Parts Catalogue
Strictly speaking our origins lie in the machine tool sector in our region, nevertheless, over time many industrial sectors have placed their trust in ARRIETA to subcontract their parts and/or processes. We work in sectors as diverse as the wind, railway, steel, shipbuilding, solar, agricultural machinery sector, amongst others.
Here is a small catalogue of parts produced by Talleres Arrieta.
Ø800 steel jaw chuck

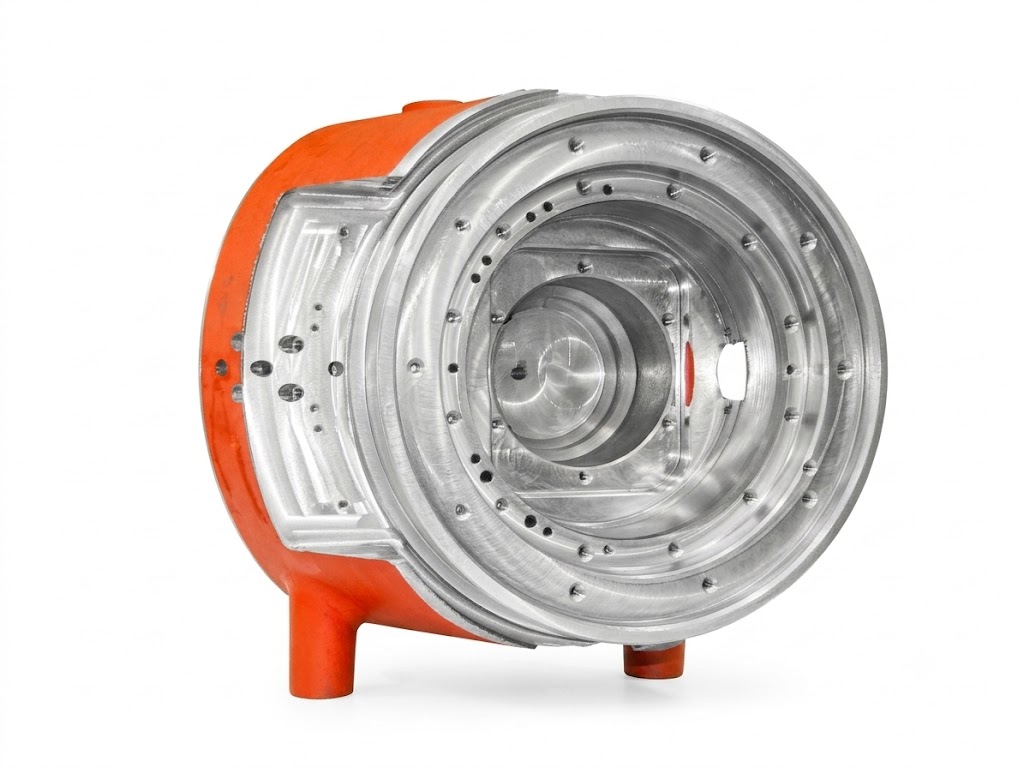

Grey cast iron Machine Tool head body
Grey cast iron Machine Tool head body
Ø400×1300 Solar shaft for 2.1 MW wind generator gearboxes
Ø400×1300 Solar shaft for 2.1 MW wind generator gearboxes
Steel rotary pneumatic machine piston
Steel rotary pneumatic machine piston

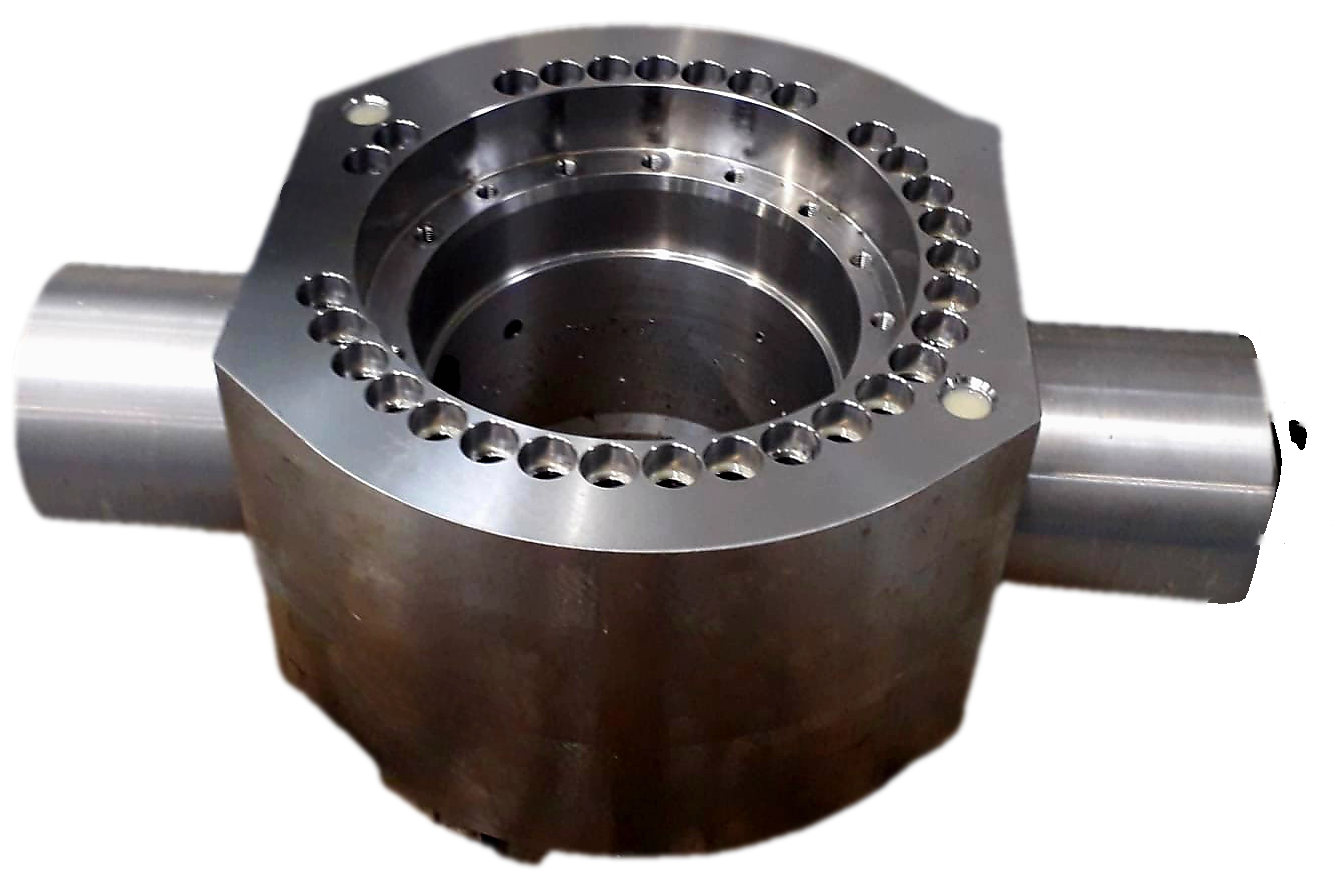

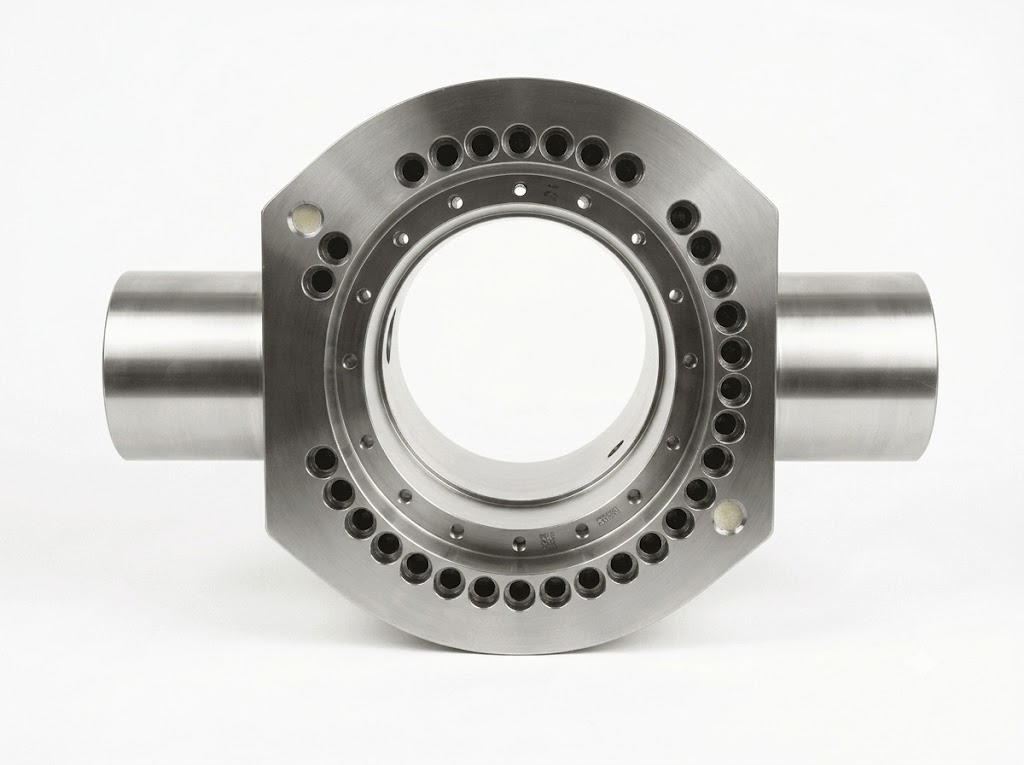

Hydraulic cylinder pivot for wind application
Hydraulic cylinder pivot for wind application
Gas block for compressors
Gas block for compressors
Brake top part for wind generators
Brake top part for wind generators
Ship building industry gearbox casing
Ship building industry gearbox casing
Adjustment spindle-nut assembly for hydraulic presses
Adjustment spindle-nut assembly for hydraulic presses
1600×1000 table for press. S275JR material
1600×1000 table for press. S275JR material
Ø500×1000 press adjustment spindle, with M285x16 thread. Material 42CrMo4.
Ø500×1000 press adjustment spindle, with M285x16 thread. Material 42CrMo4.
Cylinder for structures, cast steel material, G18NiMoCr3-6 Saw tooth thread, S300x10
Cylinder for structures, cast steel material, G18NiMoCr3-6 Saw tooth thread, S300x10
Spindle accessory
Carriage adjustment nut for presses, thread M200x10. Material 42CrMo4.
Carriage adjustment nut for presses, thread M200x10. Material 42CrMo4.

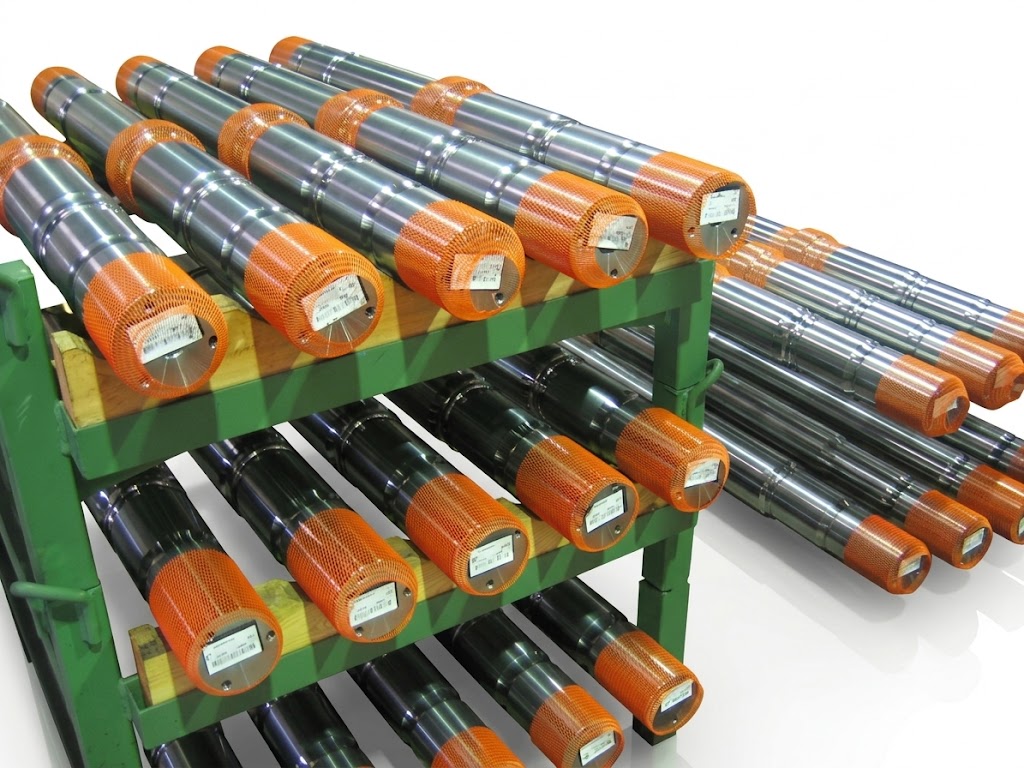

Motor shaft for railway
Machine tool head body

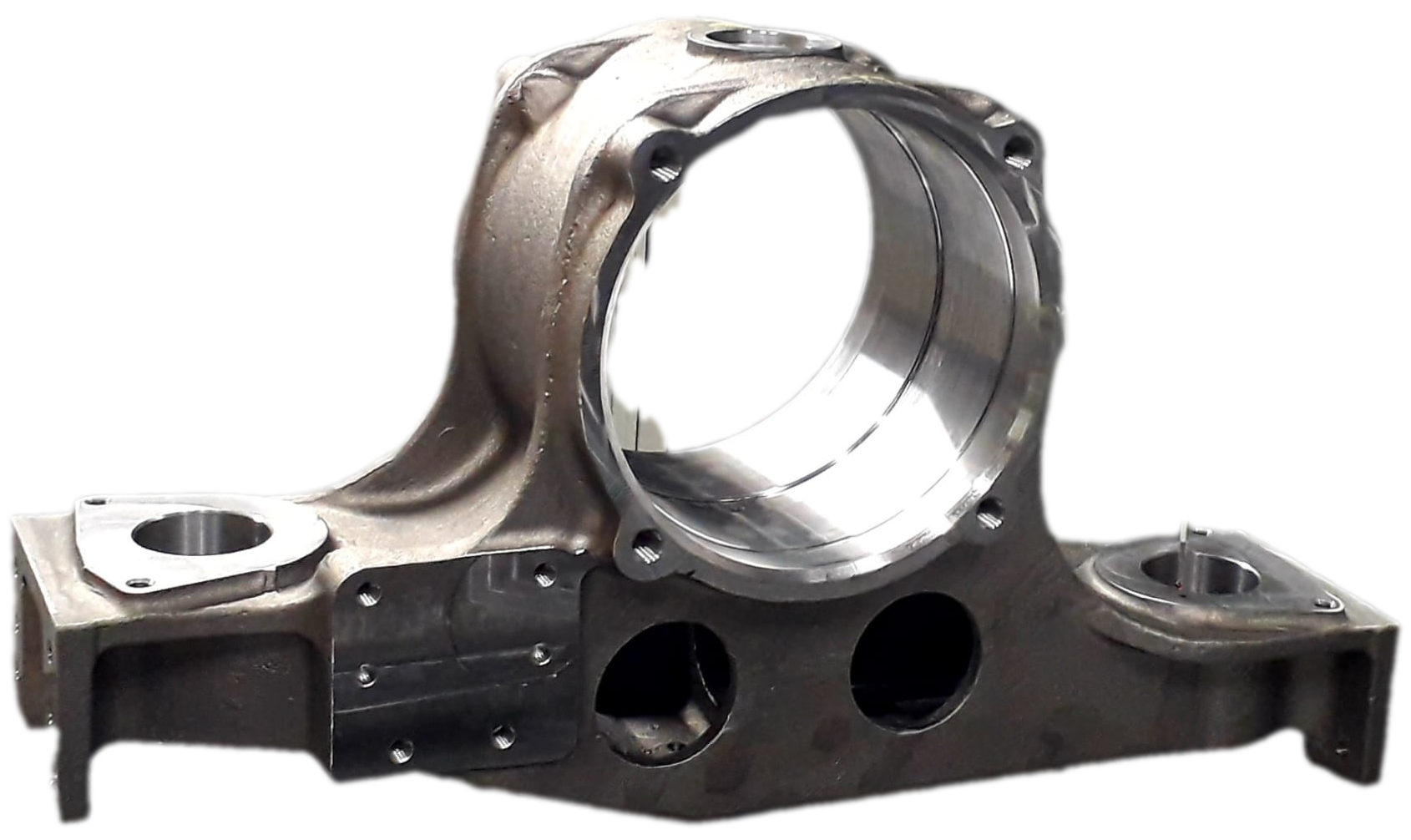

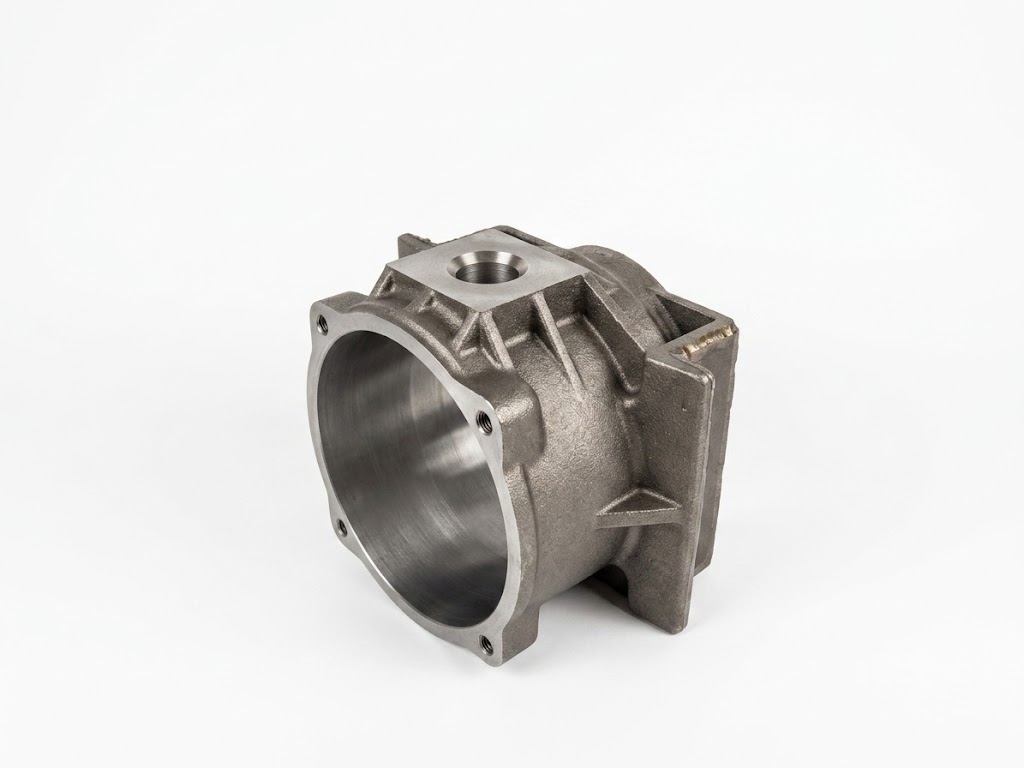

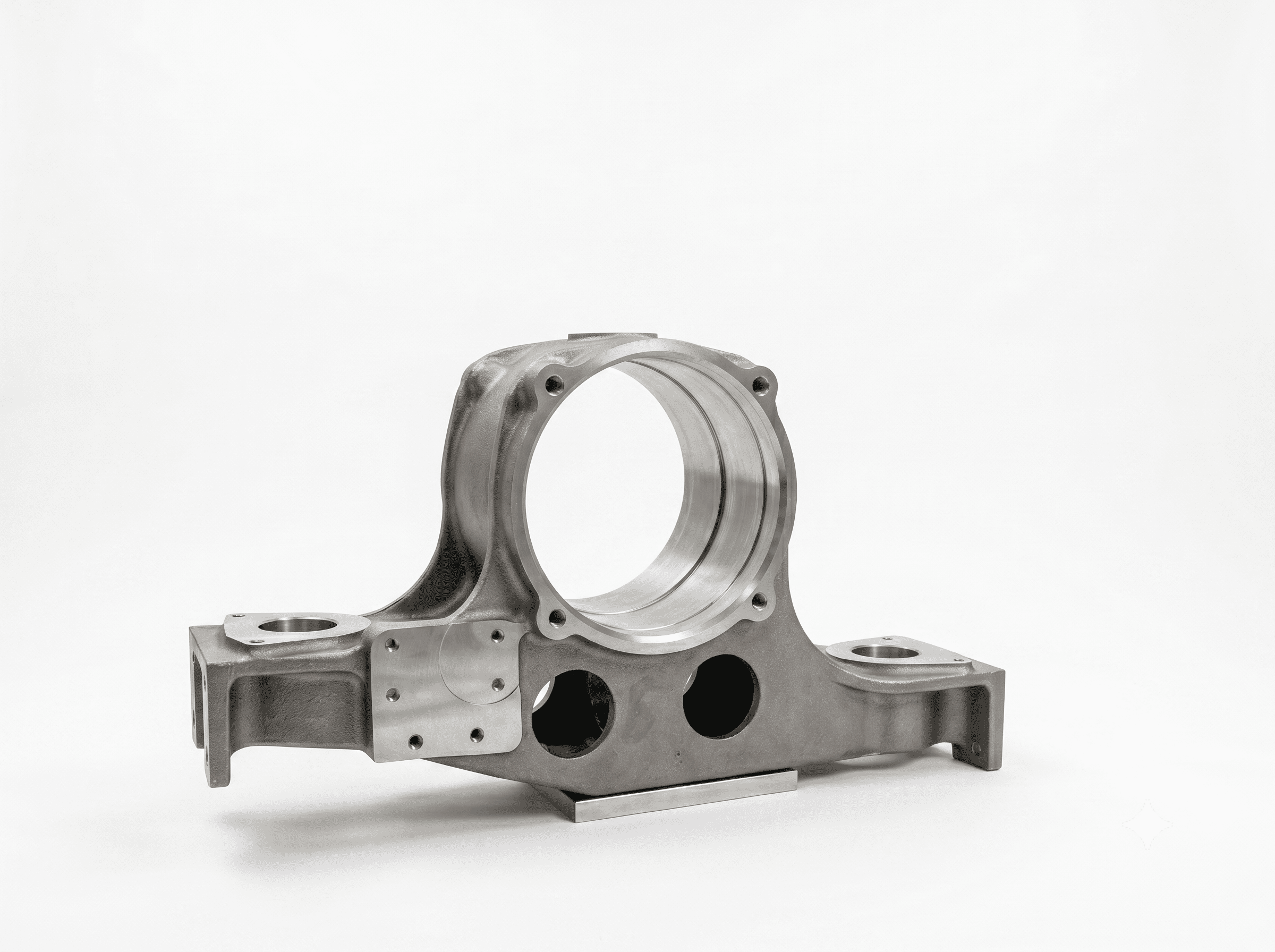

Bearing box for railway

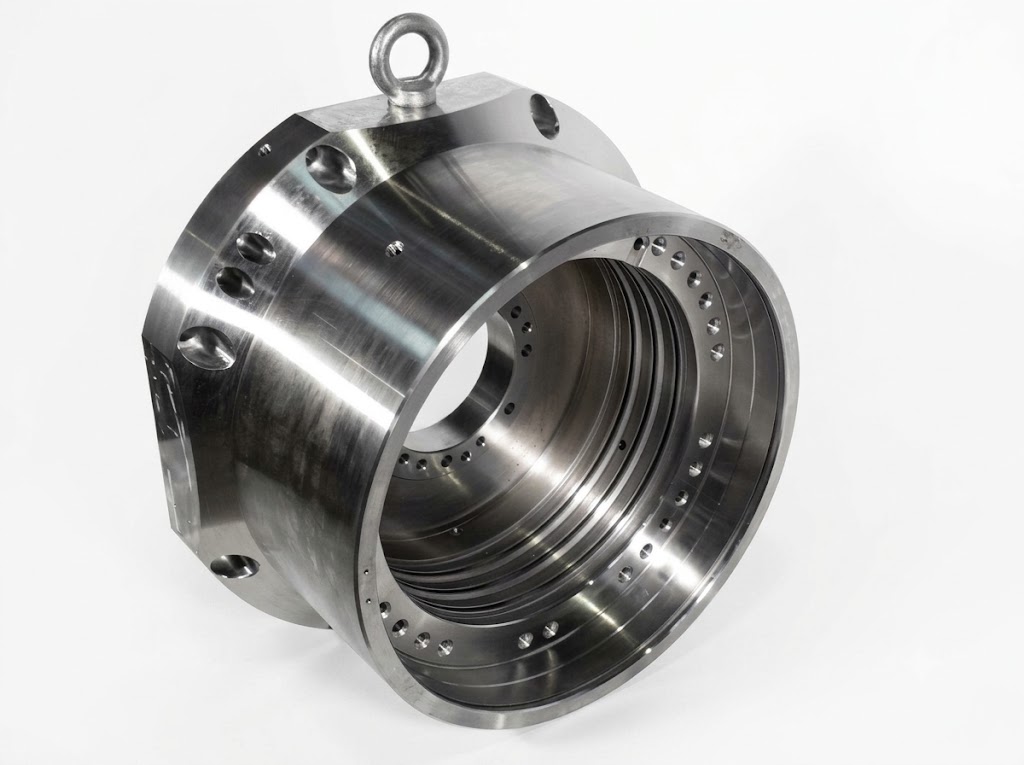

Head support
PIN blocker system brake wind turbine
PIN blocker system brake wind turbine

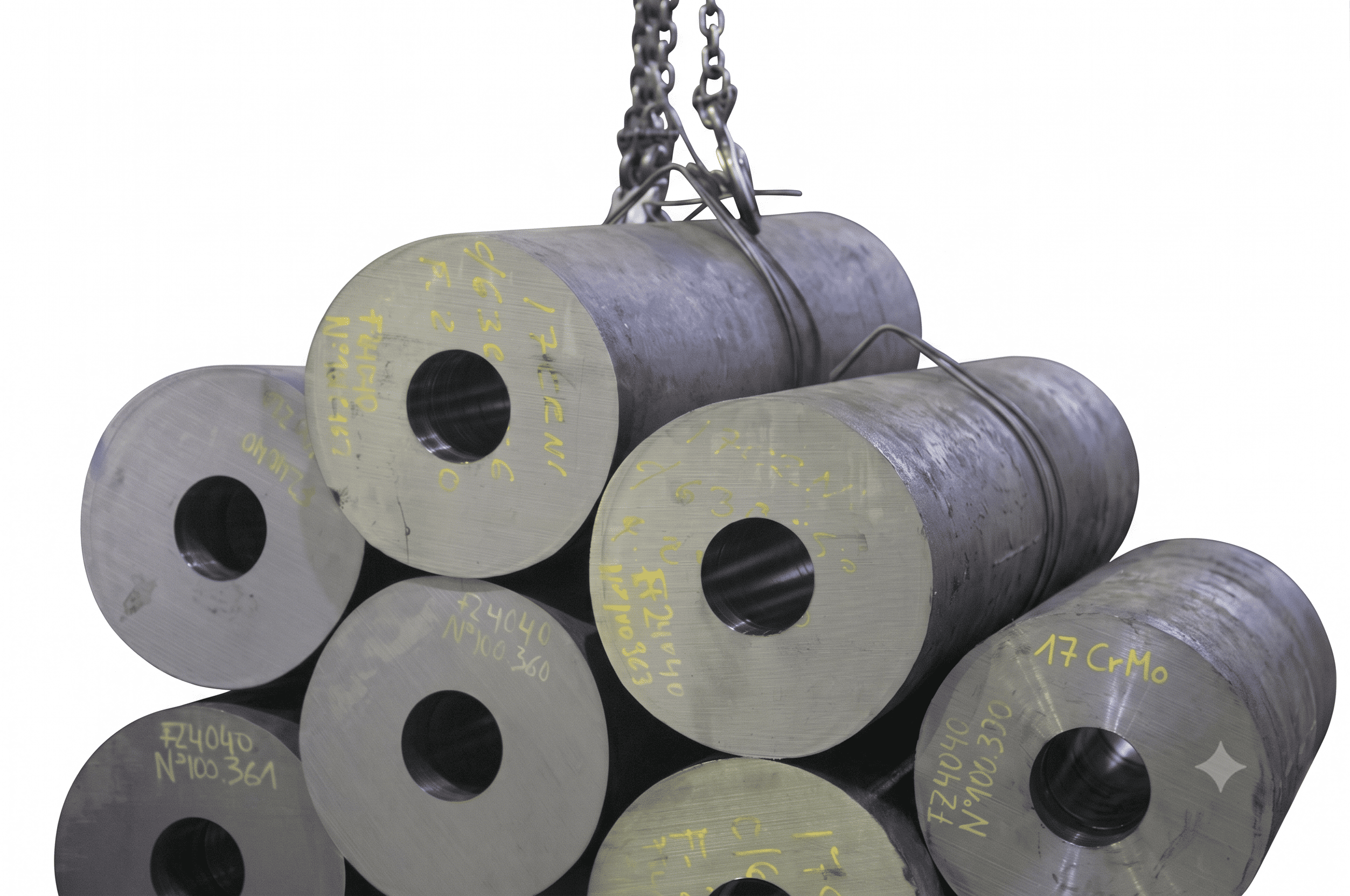

Ø400×1400 shafts with deep drilling Ø120
Ø400×1400 shafts with deep drilling Ø120
Aluminium engine unit
Gearbox housing for lifting hoist
Gearbox housing for lifting hoist

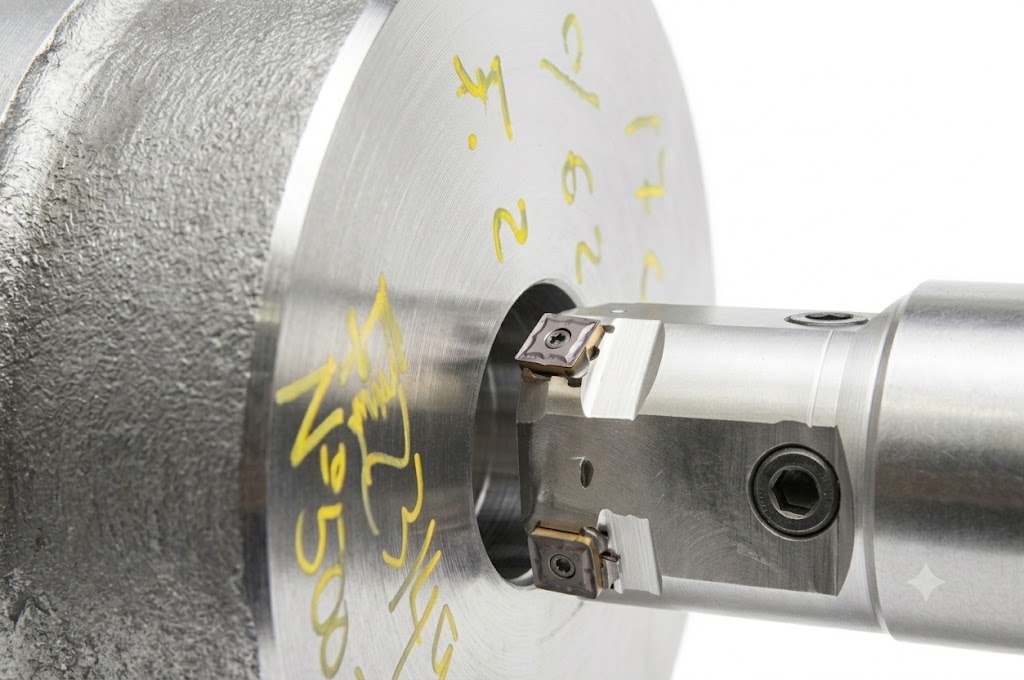

Deep drilling head Ø120

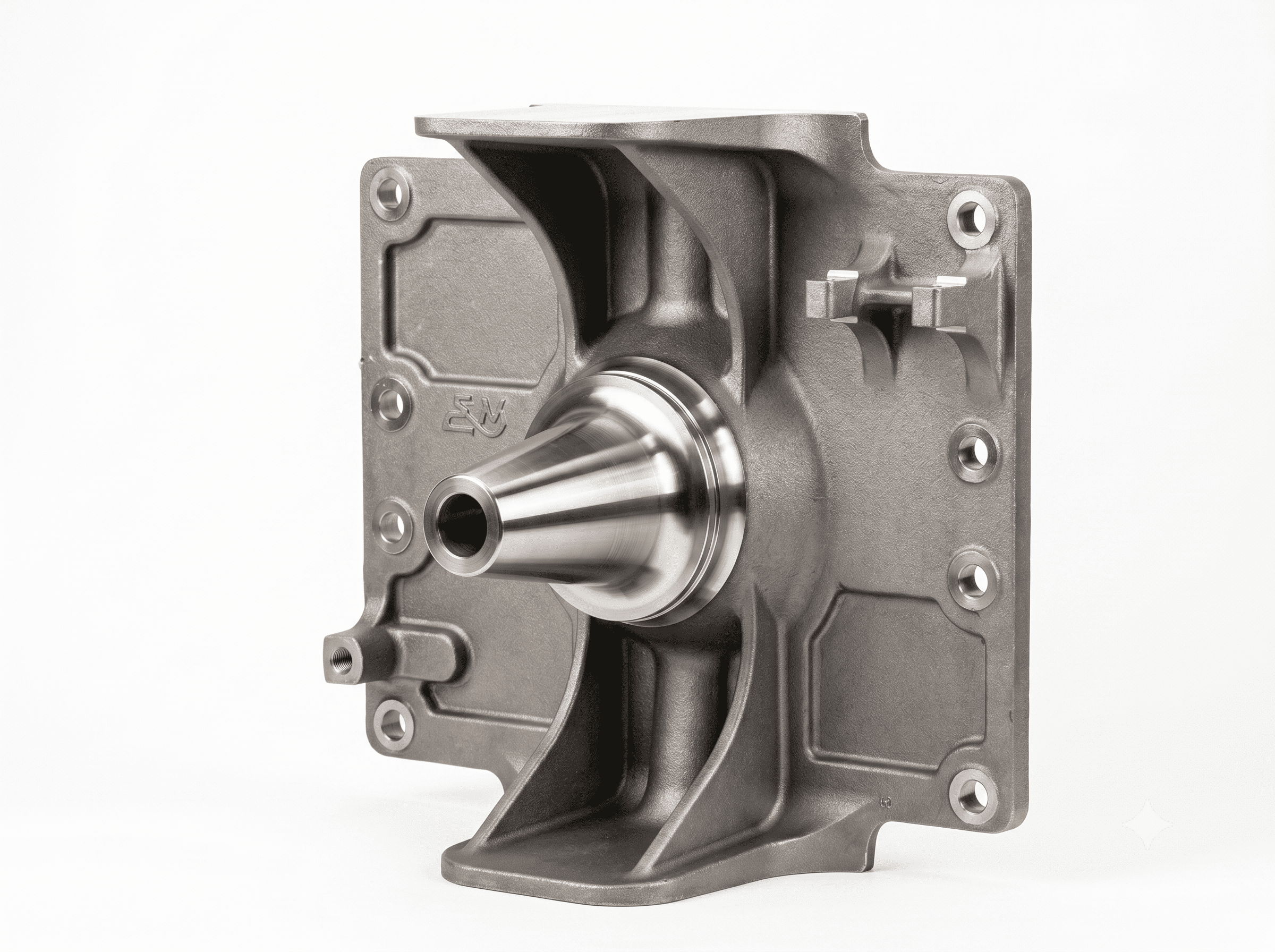

Railroad pivot

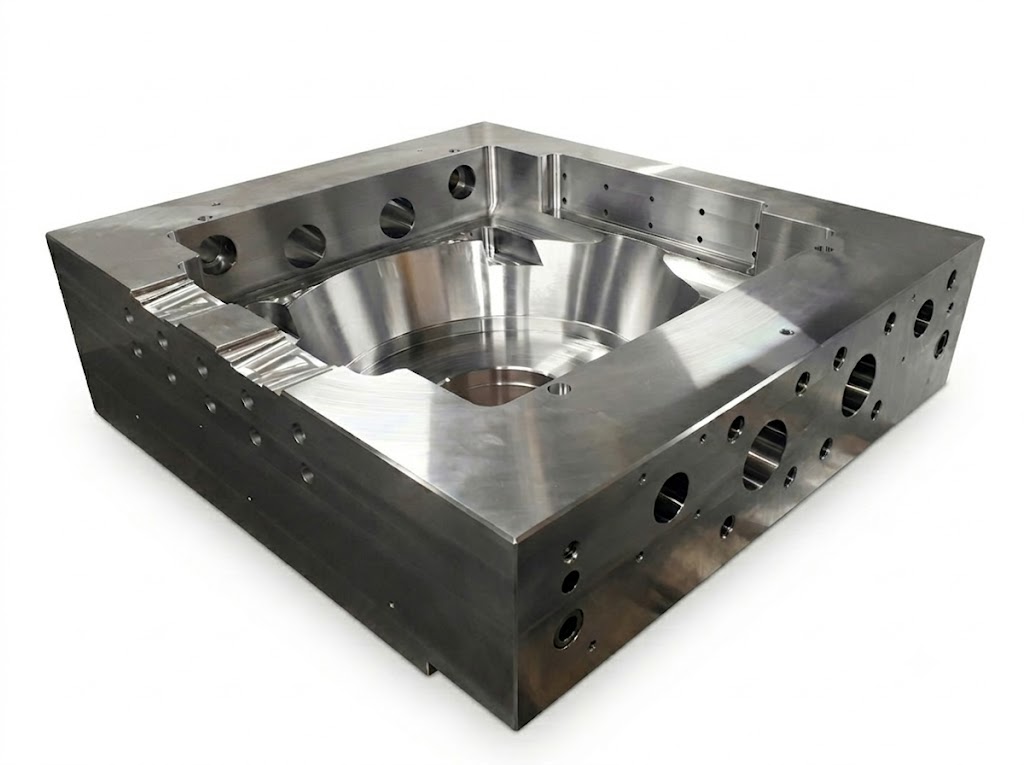

Industrial vehicle box

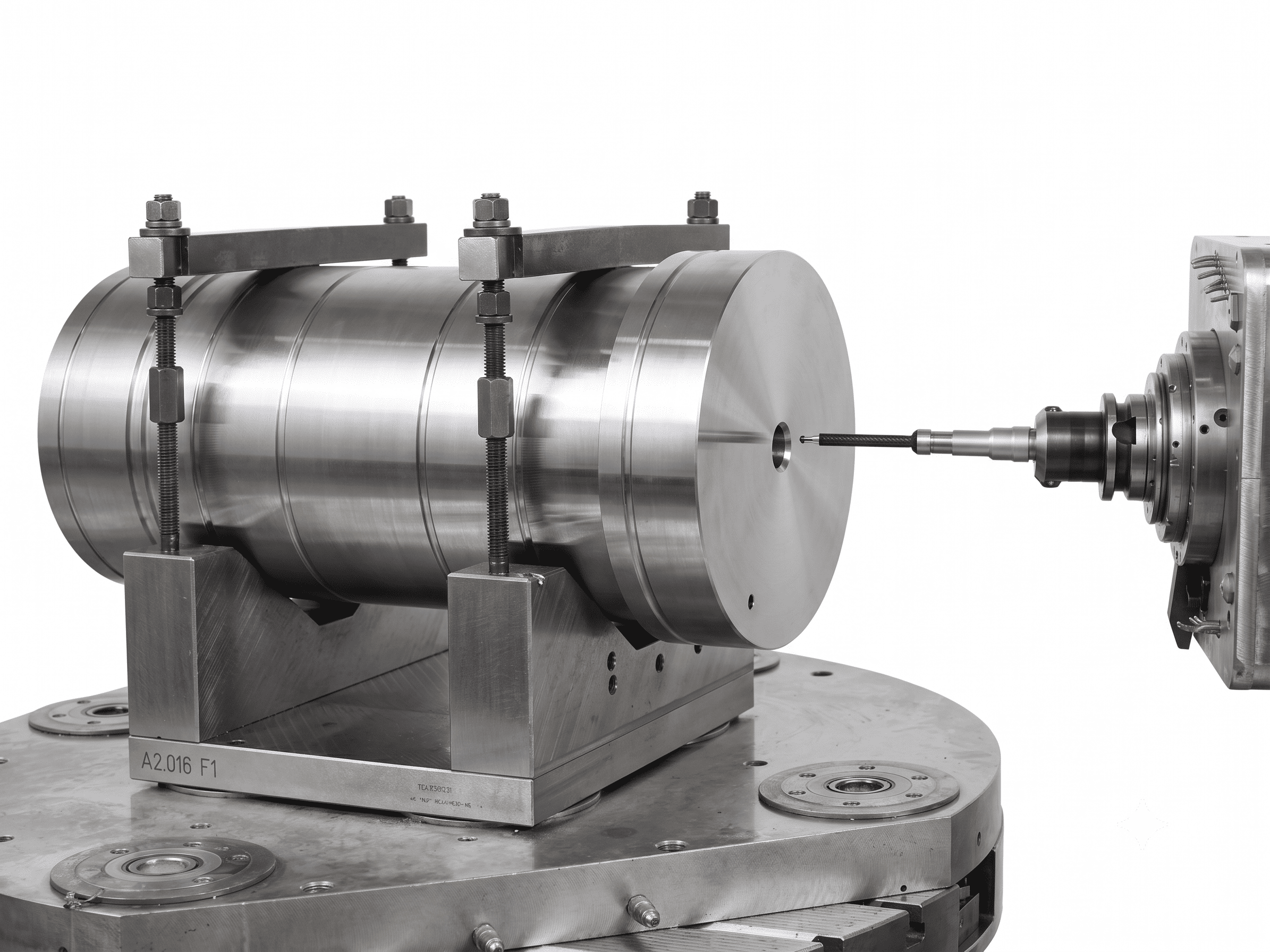

Satellite shaft planetary sistem
Satellite shaft planetary sistem

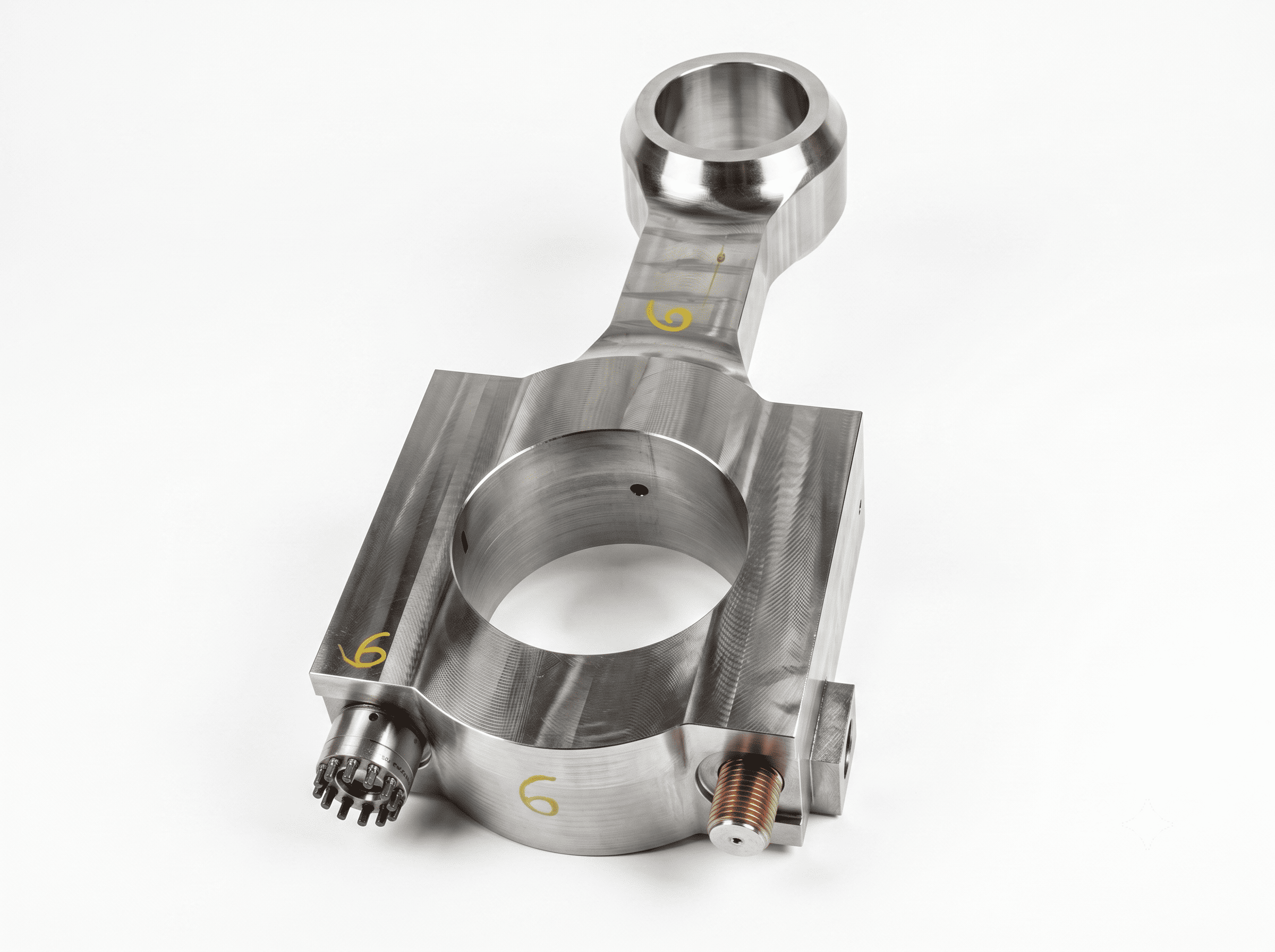

Compressor connecting rod
Compressor connecting rod
