Horizontal machining centres

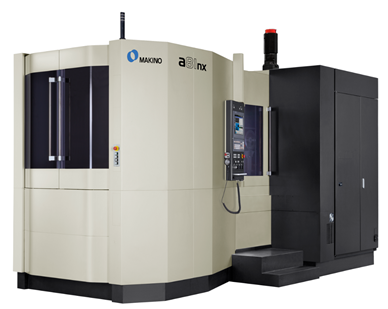

MAKINO a81nx Horizontal Machining Centre

  • X: 900 Y: 900 Z: 1020.
  • Two 630×630 pallets.
  • Maximum part weight per pallet: 1.500 kgs.
  • Automatic changer with magazine for 187 tools.
  • Head rpm: 8.000 (High torque).
  • Main engine 55 KW; 1.202 Nm
  • 6 (FS31i-B5) controller.

MATSUURA HPLUS-630 Horizontal Machining Centre

  • X: 1050 Y: 920 Z: 870.
  • Two 630 x 630 pallets
  • Maximum part weight per pallet: 1200 kg
  • Automatic changer with magazine for 120 tools.
  • Head rpm: 12,000
  • FANUC G-TECH 16i controller

MORI SEIKI Machining Centre MH-630

  • X: 1000 Y: 850 Z: 920
  • Two 630 x 630 pallets
  • Maximum part weight per pallet: 1500 kg
  • Automatic changer with magazine for 60 tools.
  • FANUC MSC-516 controller
